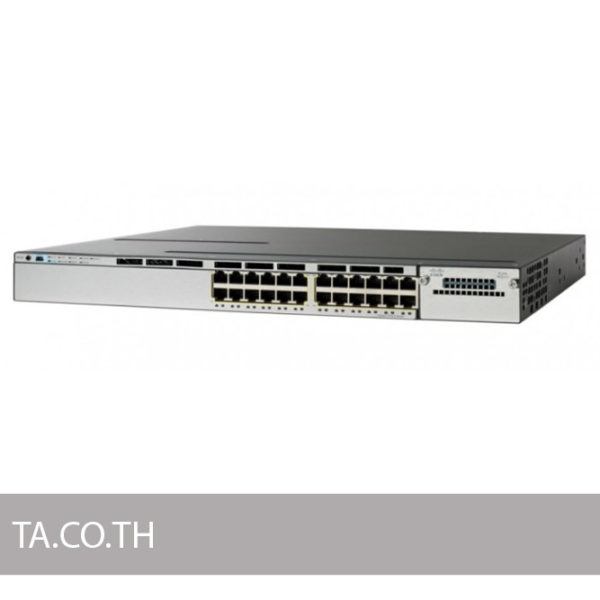

Cisco Catalyst 3850 24 Port IP Base [P/N WS-C3850-24T-S]

฿91,000.00 ฿106,680.00

Cisco Catalyst 3850 24 Port Data IP Base
รองรับ Wireless Controller ในตัว
Up to 40 Gb of wireless capacity per switch

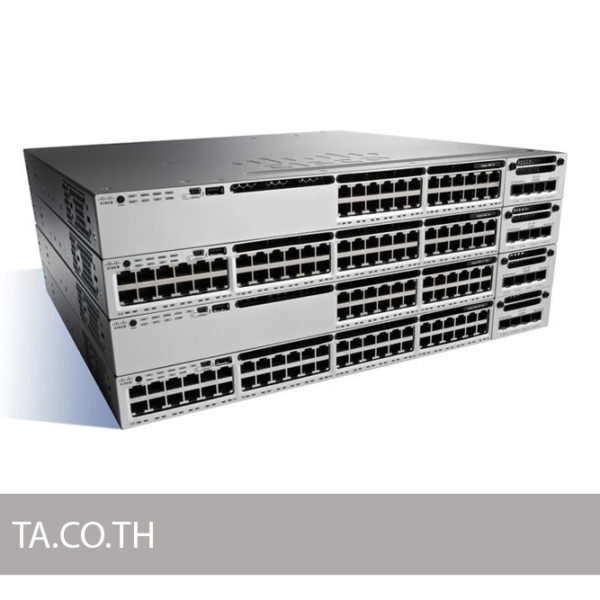

Cisco StackWise-480 technology to provide scalability and resiliency with 480 Gbps of stack throughput
Support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)
รองรับ Dual redundant, modular power supplies and three modular fans
เปลี่ยน Module uplink ได้ตามต้องการ (Optional)
พัดลม 3 , Power supply 2 (Optional)
Standard Warranty 90 Days

Cisco Catalyst 3850 Performance Specifications

Performance Numbers for All Switch Models

Switching capacity

176 Gbps on 48-port Gigabit Ethernet model

92 Gbps on 24-port Gigabit Ethernet model

68 Gbps on 12-port Gigabit Ethernet model

640 Gbps on 24-port Multigigabit Ethernet model*

472 Gbps on 48-port Multigigabit Ethernet model

1280 Gbps on 48-port 10 Gigabit Ethernet SFP+ model*

640 Gbps (packet size >= 80 bytes) on 24-port 10 Gigabit Ethernet SFP+ model*

320 Gbps on 12-port 10 Gigabit Ethernet SFP+ model*

* Packet size >= 80 bytes

Stacking bandwidth

480 Gbps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

24,000

FNF entries

48,000 flow on 48-port Gigabit Ethernet models

24,000 flows on 12-port and 24-port Gigabit Ethernet models

96,000 flows on 48-port 10 Gigabit Ethernet SFP+ model

48,000 flows on 24-port 10 Gigabit Ethernet SFP+ model

24,000 flows on 12-port 10 Gigabit Ethernet SFP+ model

DRAM

4 GB (8 GB on 48-port SFP+ model)

Flash

2 GB (4 GB on 12-port and 24-port SFP+ models, 8 GB on 48-port SFP+ model)

VLAN IDs

4,000

Total switched virtual interfaces (SVIs)

1,000

Jumbo frame

9198 bytes

Total routed ports per 3850 stack

208

Wireless

Number of access points per switch/stack

100

Number of wireless clients per switch/stack

2000

Total number of WLANs per switch

64

Wireless bandwidth per switch

Up to 40 Gbps on 48-port Gigabit Ethernet model

Up to 20 Gbps on 24-port Gigabit Ethernet model

Supported Aironet access point series

3600, 3500, 2600, 1600, 1260, 1140, 1040

Forwarding Rate of Switch Models (with 2 x 10 Gigabit + 2 x 1 Gigabit Ethernet uplinks for 12-Port and 24-Port Models and 4 x 10 Gigabit Ethernet Uplinks for 48‑Port Models)

Model

Forwarding Rate

WS-C3850-12S

50.5 Mpps

WS-C3850-24T

WS-C3850-24P

WS-C3850-24S

68.4 Mpps

WS-C3850-48T

WS-C3850-48P

WS-C3850-48F

130.95 Mpps

WS-C3850-24XU

500 Mpps (80B packets)

WS-C3850-12X48U

460 Mpps (64B packets)

WS-C3850-12XS

227.28 Mpps

WS-C3850-24XS

454.55 Mpps

WS-C3850-48XS

909 Mpps

Connectors for Cisco Catalyst 3850 Series

Connectors and cabling

●  1000BASE-T ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling
●  Multigig-T ports: RJ-45 connectors, 4-pair Cat-5E, Cat-6, Cat6A UTP cabling
●  1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling
●  100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, DWDM and CWDM SFP transceivers: LC fiber connectors (single-mode or multimode fiber)
●  10GBASE-SR, LR, LRM, ER, ZR, DWDM SFP+ transceivers: LC fiber connectors (single-mode or
multimode fiber)
●  CX1 cable assemblies: SFP+ connector
●  Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling
●  Cisco StackPower: Cisco proprietary power stacking cables
●  Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
●  Management console port: RJ-45-to-DB9 cable for PC connections

Power connectors

●  Customers can provide power to a switch by using either the internal power or StackPower from another member in the power stack. The connectors are located at the back of the switch.
●  Internal power supply connector: The internal power supply is an autoranging unit. The internal power supply supports input voltages between 100 and 240VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
